220MW Solar Farm

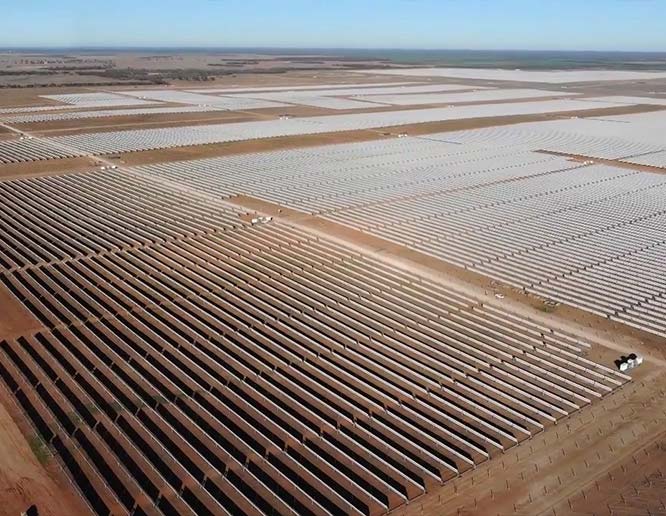

Sunraysia Solar Farm is a 230MW solar photovoltaic generation station that feeds the 220kV Transmission system operated by TransGrid. Over 1 million solar panels feed into 104 Power Conversation Units (PCUs) with 2.2MVA step up power transformers, interconnected via 52 Ring Main Units (RMUs) across the 33kV solar farm reticulation system. The reticulation system feeds into 8 x 33kV Incomers across two High Voltage Switchboards before feeding into a 220kV, 250MVA Power Transformer at Balranald substation.
- Owner: Vena Energy
- Location: Tailem Bend, South Australia
- Scope: HV Testing, Commissioning & Energisation
SERVICES PROVIDED
Integral Power® was engaged by Vena Energy to provide High Voltage Testing and Commissioning of the entire AC network assets including:

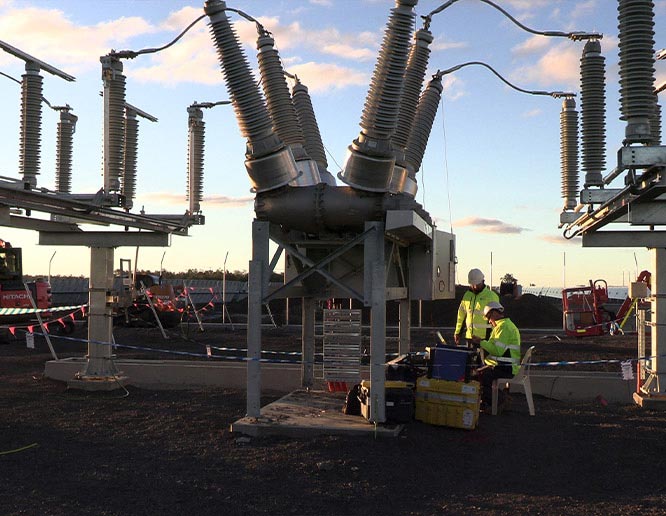

- Primary Testing of High Voltage Switchboards

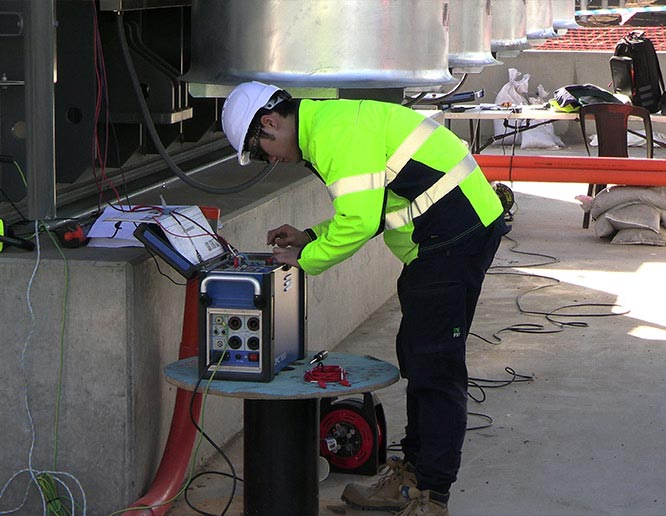

- Primary & Secondary Injection Testing of the Solar Farm Protection Schemes
- Off Frequency Current Injection Testing of the Earth Grids

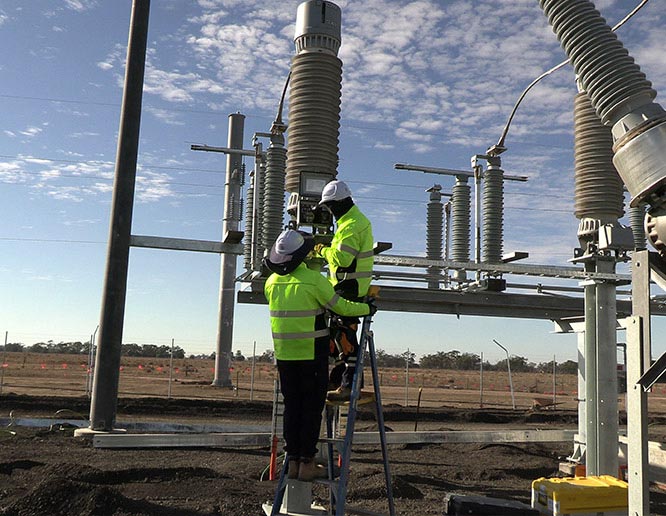

- Step and Touch Potential Validation at the Substations

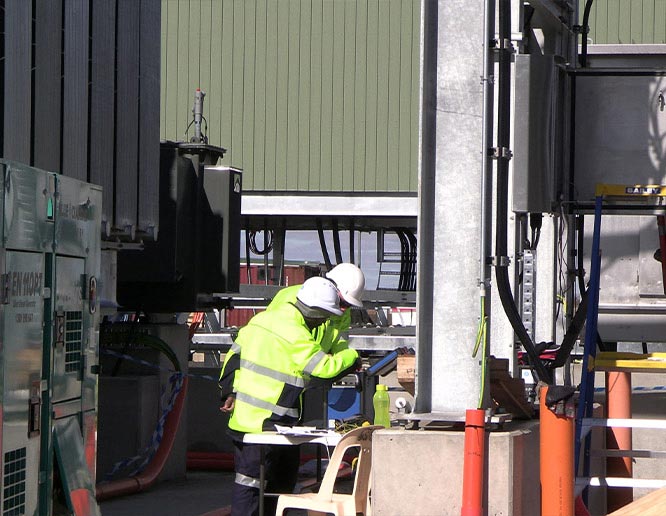

- Site Acceptance Testing of Power Transformers
- Site Acceptance Testing of RMUs & Associated Protection Schemes
- Detailed Functional and Wiring Checks
- SCADA Integration Testing
- High Voltage Switching and Back Energisation Services
