Crookwell II Wind Farm

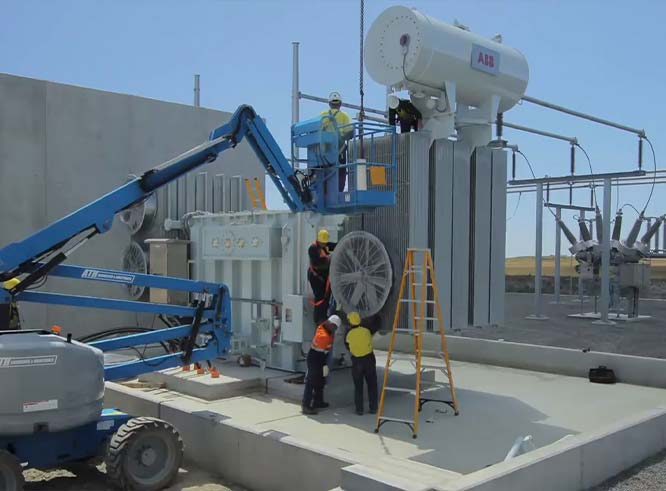

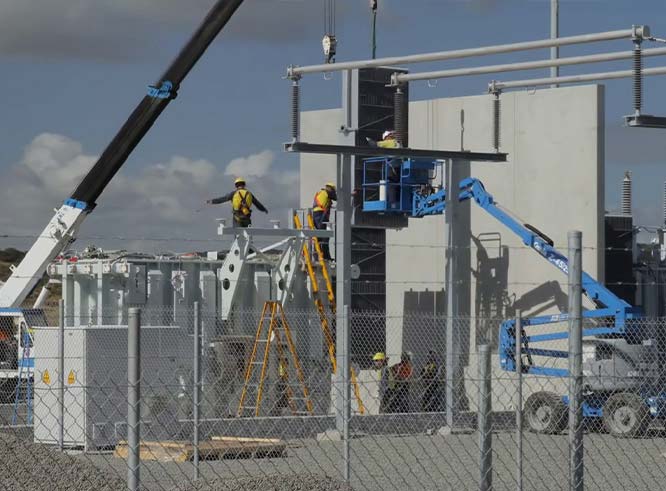

Crookwell II Wind Farm is a 95MW generating station that feeds the 330kV Transmission system operated by TransGrid. 28 x 3.4MW GE wind turbine generators feed the 33kV Wind Farm reticulation systems that terminate at 5 x 33kV incomers on a single High Voltage Switchboards before feeding into TransGrid’s 330kV, 100MVA Power Transformer at Crookwell substation.
- Owner: GPG Australia
- Location: Crookwell, NSW
- Scope: Wind Farm Testing & Commissioning
SERVICES PROVIDED
Integral Power® was engaged by GPG to provide High Voltage Testing and Commissioning of the entire Balance of Plant (BoP) assets including:

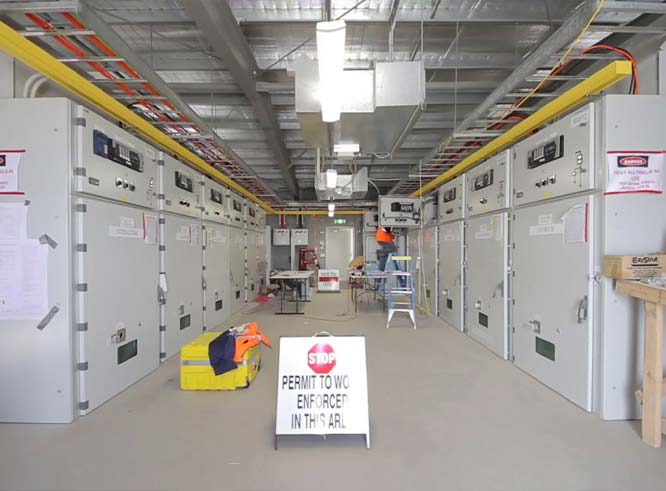

- Primary Testing of the 33kV High Voltage Switchboard
- Primary & Secondary Injection Testing of the Wind Farm Protection Schemes
- Off Frequency Current Injection Testing of the 33kV Earth Grid
- Step and Touch Potential Validation at the 33kV Substation
- Detailed Functional and Wiring Checks
- SCADA Integration Testing with TransGrid
- High Voltage Switching and Back Energisation Services
